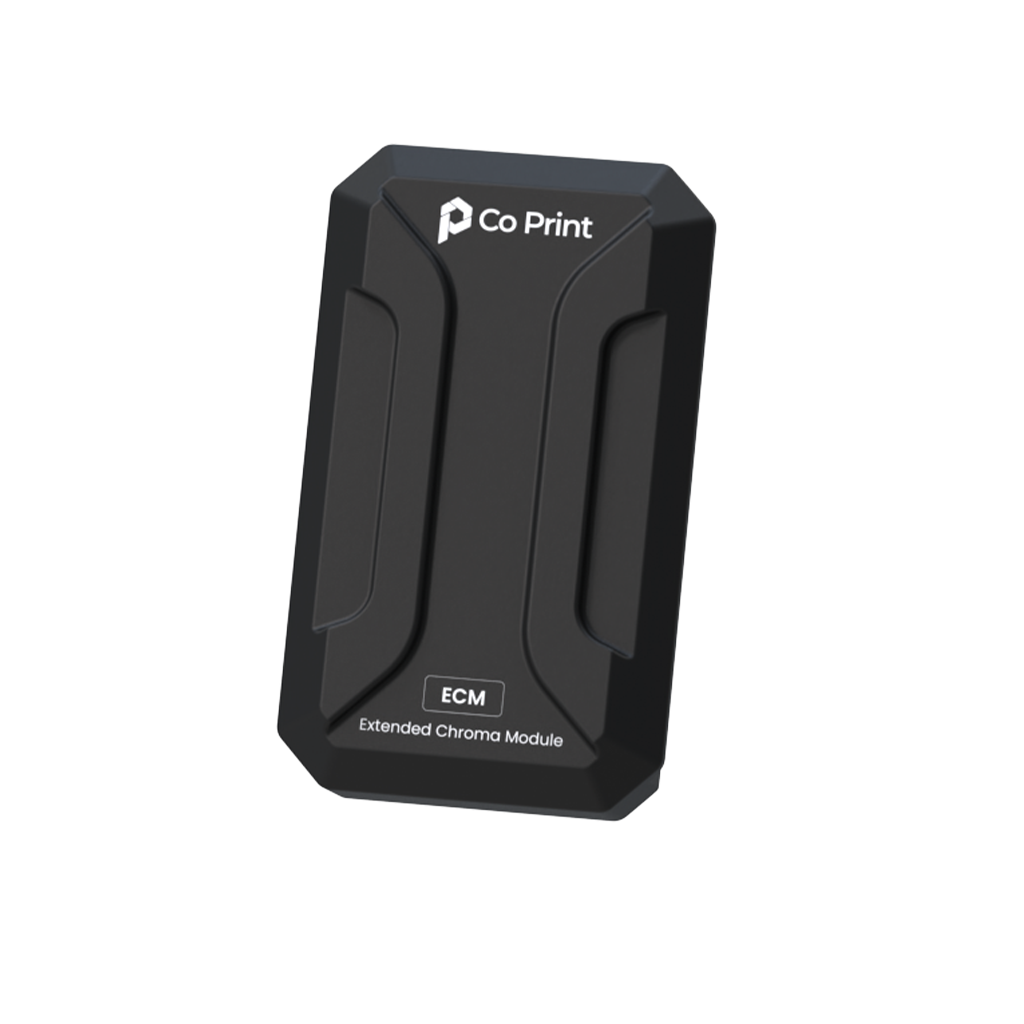

Co Print ECM: Extended Chroma Module for Multi-Color 3D Printing (4 Extruder Management, KCM & ChromaPad Compatibility, Up to 20 Color Prints)

The Extended Chroma Module (ECM) adds control for 4 additional extruder motors to your ChromaSet or KCM Set via a Type-C connection. With one ECM, you can manage up to 8 extruders, enabling prints with 8 different filaments. Multiple ECMs can be used, allowing control of up to 20 extruders and creating prints with 20 materials.
Title

Expected shipping date：2-3 Days
Title

HURRY! ONLY 99 LEFT

Quantity

In Stock

ECM | Extended Chroma Module Product Information

ECM stands for Extended Chroma Module, designed to enhance your ChromaSet or KCM Set by adding control for 4 additional extruder motors. By connecting the ECM to your set using a Type-C connection, you can attach 4 extruder motors to the ECM. Thus, our set, which comes standard with control for 4 extruders, can manage 8 extruders with one ECM, allowing you to print with 8 different filaments.


It is possible to use more than one ECM with ChromaSet and KCM. Consequently, our sets can control up to a total of 20 extruders, enabling the creation of colorful prints by utilizing 20 different materials in the same print.

Add Products your Order
17% OFF

Co Print ECM | Extended Chroma Module

$49.00
$59.00
25% OFF
Co Print ChromaHead | Multi-Color 3D Printing Upgrade Toolhead

Co Print ChromaHead | Multi-Color 3D Printing Upgrade Toolhead

$149.90
$199.90

Specifications of the ECM

Extruder Control: 4 Extruder

Connection: Type C

Sockets: 4X Extruder,

Cover: ABS Plastic

Cooling: Went Channels

Integrated Card: ECM Board

CX-1 Support:  Yes

Power Input: 24V - 5A

Weight: 56g

Package Dimension: 131.5x90x36 mm

Global Shipping

Worldwide Shipping

Early Prices

Special Launch Prices

Fast Cargo

Fast Shipping Service

Wiki & Support

Detailed Guides and Documentation

How Does The Extended Chroma Module Work?

ECM stands for Extended Chroma Module, designed to enhance your ChromaSet or KCM Set by adding control for 4 additional extruder motors. By connecting the ECM to your set using a Type-C connection, you can attach 4 extruder motors to the ECM. Thus, our set, which comes standard with control for 4 extruders, can manage 8 extruders with one ECM, allowing you to print with 8 different filaments.
It is possible to use more than one ECM with ChromaSet and KCM. Consequently, our sets can control up to a total of 20 extruders, enabling the creation of colorful prints by utilizing 20 different materials in the same print.

Detail Your Models by Adding Extra Color!

You can capture the detail you want by painting your models in a wide range of colors, from 4 to 20 colors, thanks to the ECM module.
