Co Print ChromaPad: Advanced Klipper Control Pad for High-Speed Multi-Color 3D Printing

ChromaPad, the world's first multi-filament enabled Klipper-based 3D printing pad, is at the heart of ChromaSet. Control up to 8 printers remotely while giving them a boost in printing speed. Armed with a robust processor and exclusive ChromaScreen software.
Title

Expected shipping date：2-3 Days
Title
HURRY! ONLY 77 LEFT
OUT OF STOCK
Restock soon! PREORDER NOW
HURRY! LET BUY NOW

HURRY! ONLY 77 LEFT

Quantity
In Stock
OUT OF STOCK
Restock soon, PREORDER NOW!
HURRY! LET BUY NOW

In Stock

Co Print ChromaPad Product Information

ChromaPad
ChromaPad is a control panel designed to manage 3D printers. It includes a powerful mini-computer with 2GB of RAM, allowing for seamless Klipper control integration with 3D printers.

ChromaScreen
ChromaScreen is a Klipper-based user interface software. It features newly developed interfaces that support multi-extruders and control up to 8 printers. With its user-friendly design, ChromaScreen delivers an excellent 3D printing experience.

Add Products your Order
17% OFF

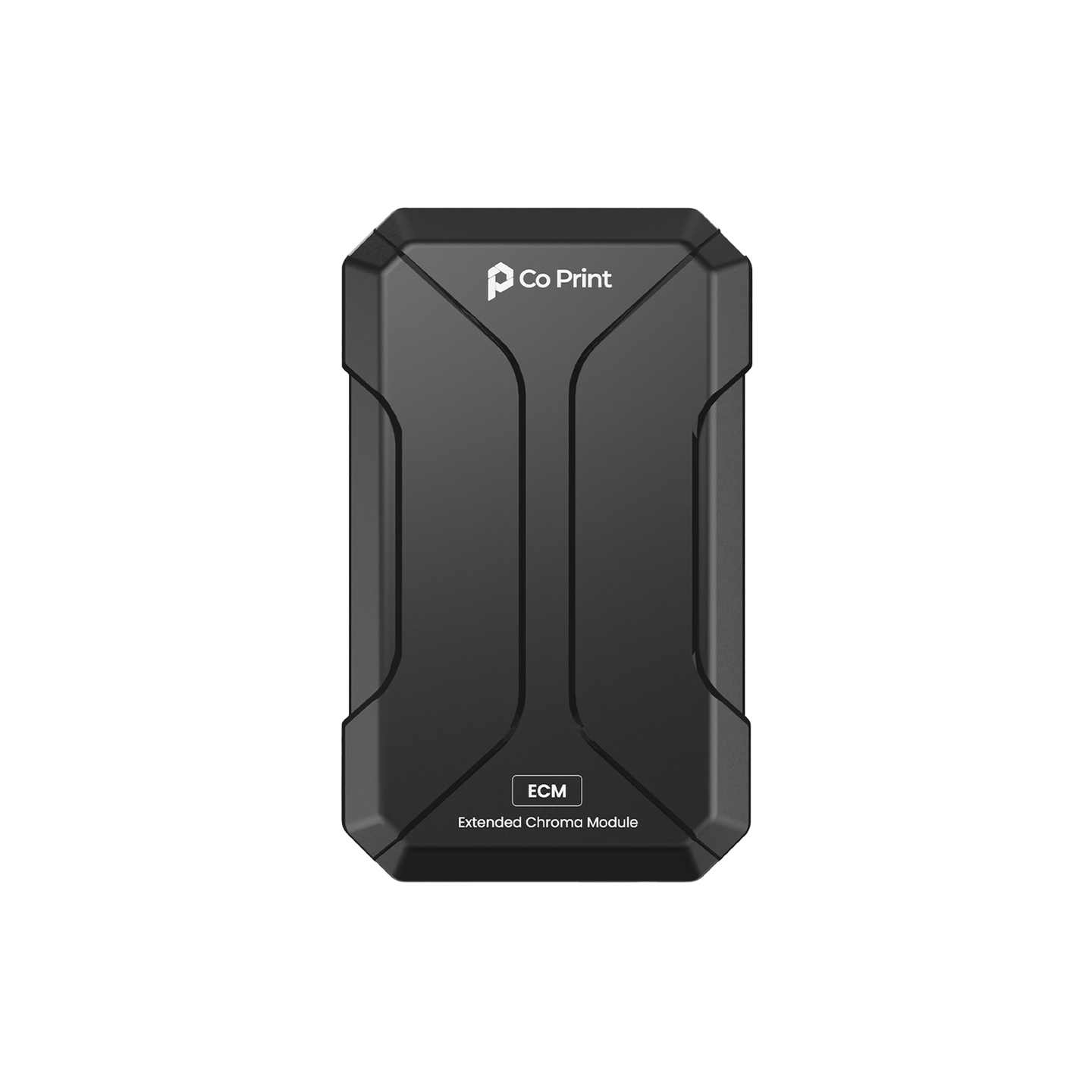

Co Print ECM | Extended Chroma Module

$49.00
$59.00
12% OFF
ECM + 4 Extruder Pack

ECM + 4 Extruder Pack

$149.00
$170.00

Buy ChromaPad as a different verisons

To control the ChromaHead, a ChromaPad or Klipper Chroma Module is required. You can take advantage of discounted prices by purchasing all the necessary products as a set.

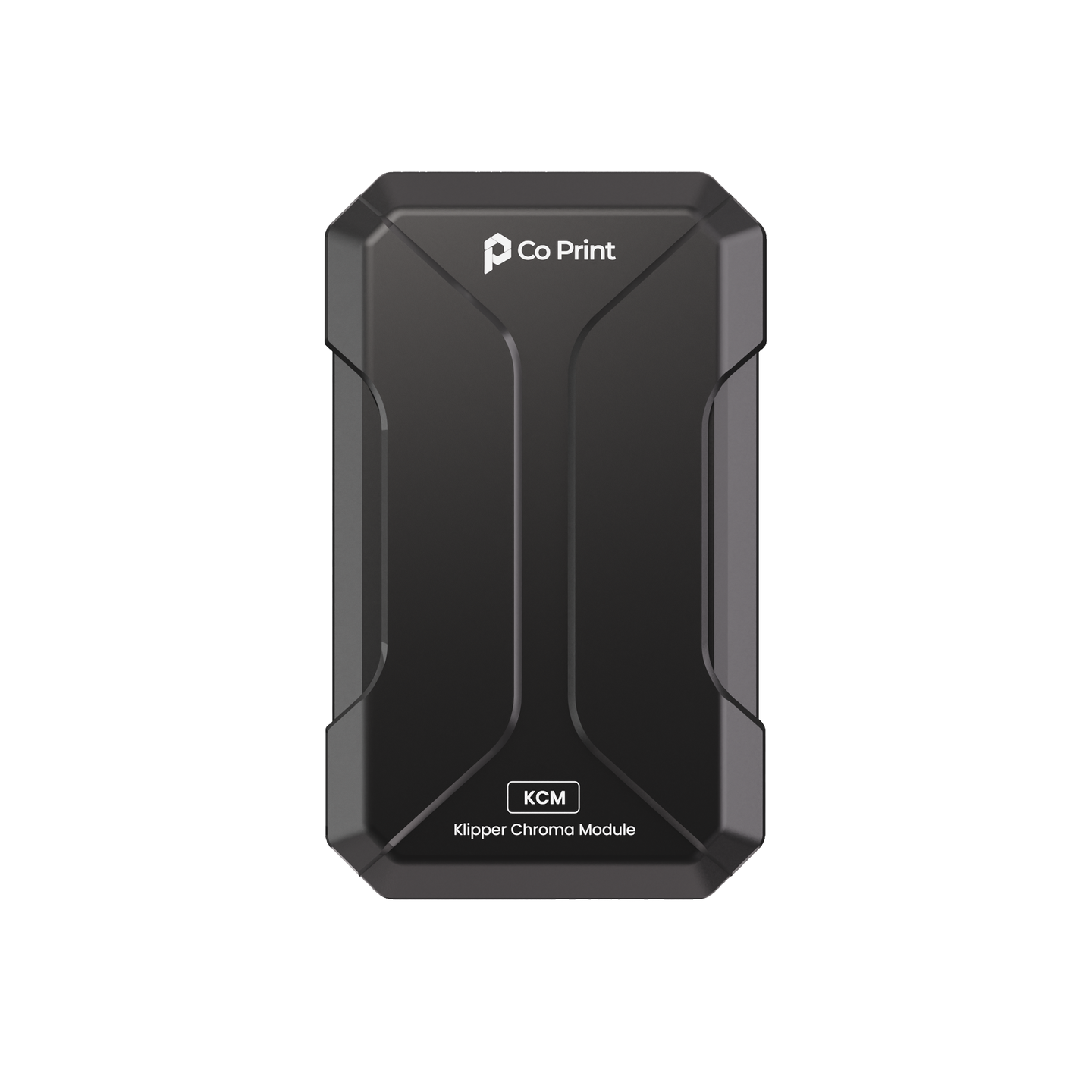

KCM Set

For Klipper Printers

Klipper Chroma Set
$289.90
$399.99

ChromaSet

For Marlin Printers

Co Print Chroma Set
$439.00
$550.00

Specifications of the ChromaPad

Display Size: 7 Inch

Display Resolution: 1920x1080

Ram: 2GB

Display Type: IPS

Multi-Touch: Yes

Microarchitecture: ARM Cortex- A55

Vibration Sensor: Yes

USB Port: 3X USB 2.0

Weight: 620g

Toolhead Port: 1x ChromaHead Socket

Rated Voltage: 24v 5A

Internet Connection: Wifi 5GHZ

Processor: Amlogic S905X3

Software: ChromaScreen (Klipper)

Rom: 16GB

Stepper Port: 5x 4 Pin Socket

Processor: Amlogic S905X3

Soc Data Bus Width: 64bit

Package Dimension: 107.5x185.5x92mm

Color: Black

Global Shipping

Worldwide Shipping

Early Prices

Special launch prices

Fast Cargo

Fast and reliable shipping service

Wiki & Support

Detailed guides and documentation

Klipperizing Pad

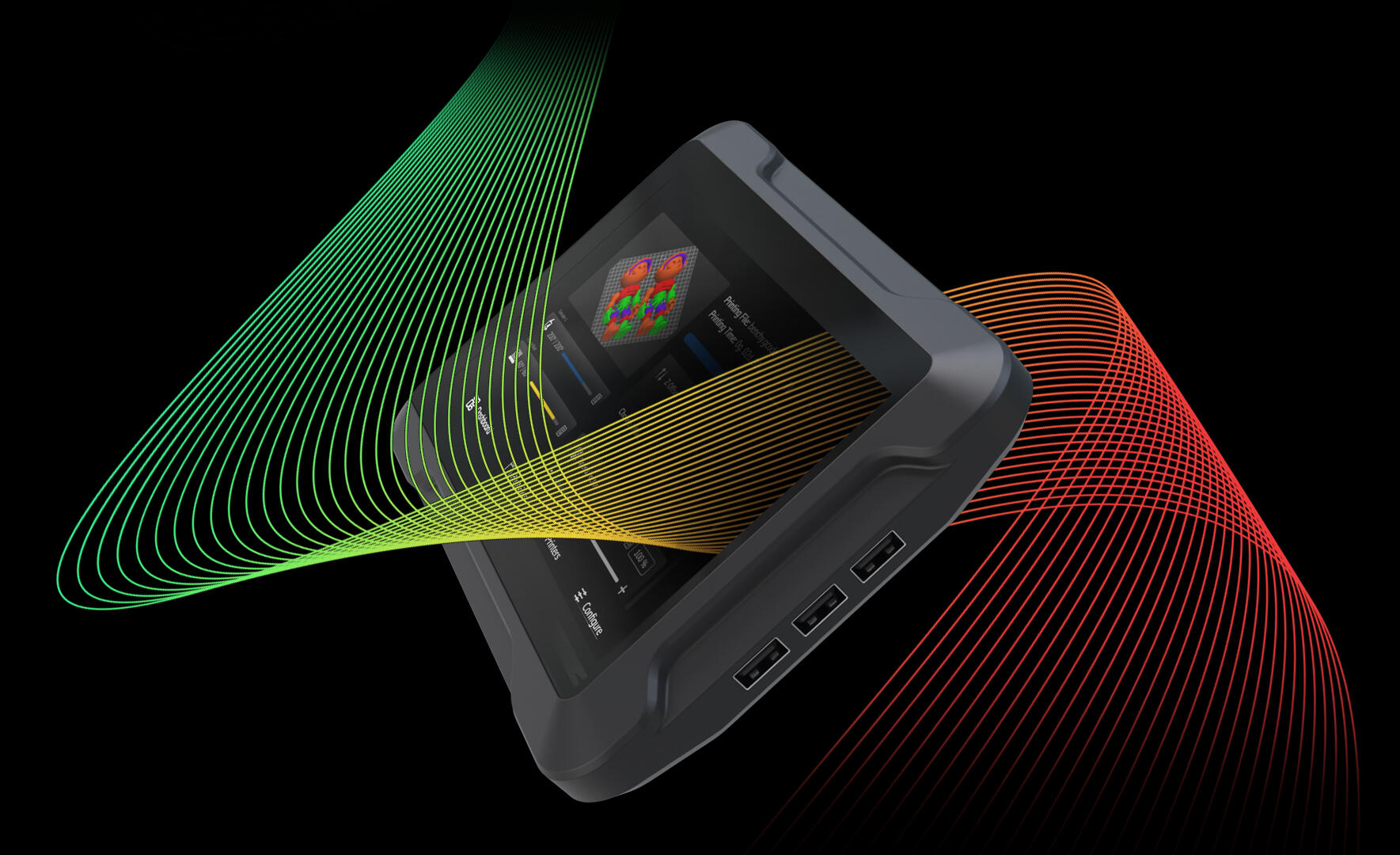

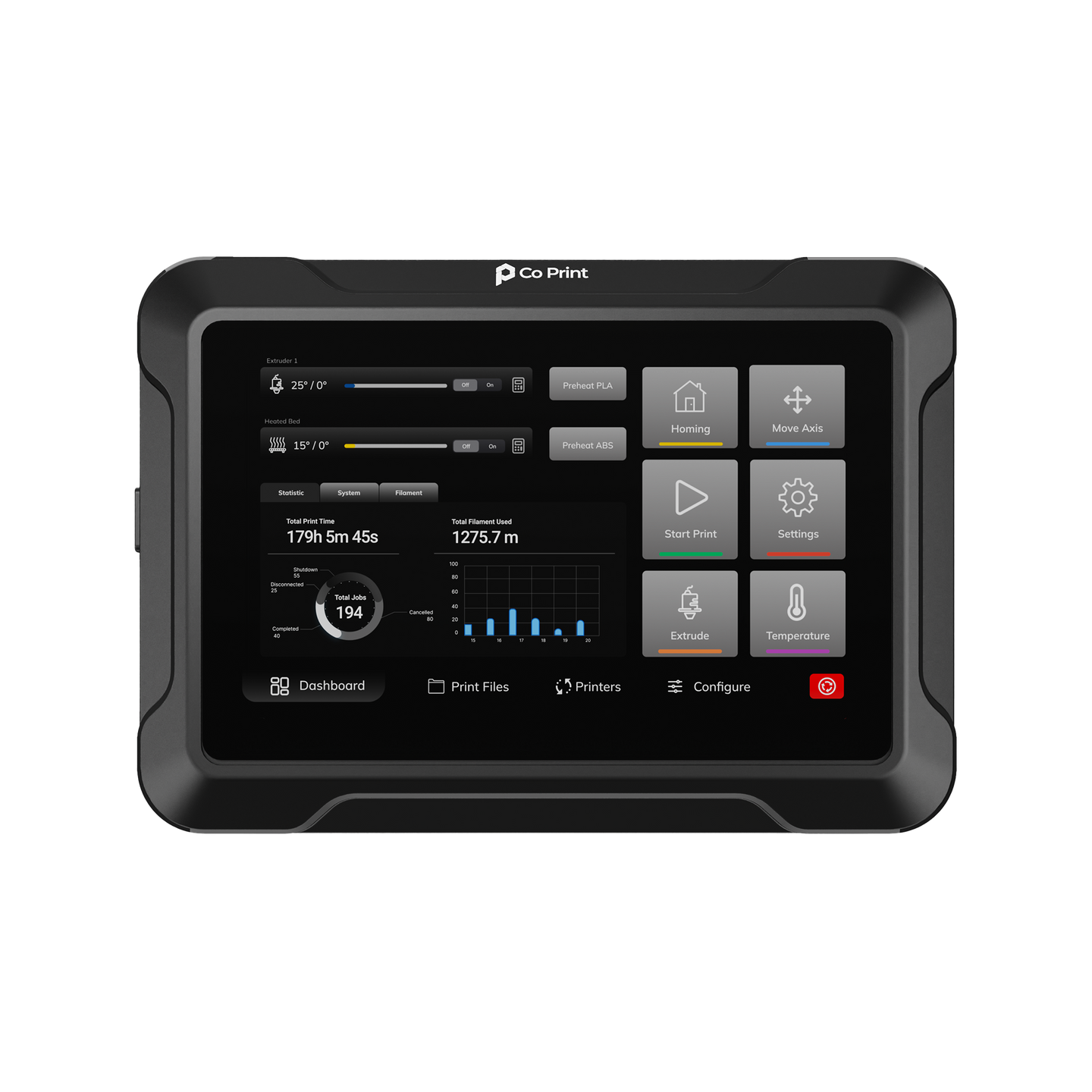

Meet the ChromaPad

ChromaPad, the world's first multi-filament enabled Klipper-based 3D printing pad, is at the heart of ChromaSet. Control up to 8 printers remotely while giving them a boost in printing speed. Armed with a robust processor and exclusive ChromaScreen software.

ChromaScreen

Meet The ChromaPad's Interface

  • Dashboard

  • Mutli Extruder Control

  • Multi Printer

  • Printing Page

The homepage of ChromaScreen is designed to provide users with a variety of statistics in one place, while also allowing them to use multiple controls without leaving the main screen. Unlike the standard Klipper interface, it is enhanced with quick shortcuts and more intuitive graphics.

Easy Temp Management

By using shortcuts like the On and Off buttons, you can quickly access preheat settings or end the heating process with a single click if desired.

 Switchable Tab Structure

You can access different controls and statistics by switching between tabs without leaving the Dashboard.

Statistic Tab

n the Statistics tab, you can track total printing time, success/error rates, print counts, filament usage, and view daily charts in a table format.

System Tab

In this tab, you can view load rates, names, and usage percentages of system components.

Filament Tab

In the Filament tab, you can control multiple extruders, park filaments, and perform load/unload operations

Move Axis Control

Temperature Control

Extruder Control

Detailed Settings

From the Multi Extruder control page, you can advance and retract the selected extruder's filament to your desired length, easily adjust the feed rate, and utilize shortcuts.

Multi Extruder Selector

With the interface designed to manage multiple extruders from a single screen, you can easily control various functions, such as feeding or retracting filament and adjusting speed, on your selected extruder.

Select with a single click and control it as you wish.

Multi Printer Control System

Unlike the standard Klipper screen, ChromaScreen offers a multi-printer control interface. Using this interface, you can switch between eight printers with a single click and manage multiple devices through ChromaPad. If no setup has been done, you can easily select empty slots to configure a new printer.

Setup Wizard

With the Setup Wizard, adding a printer is very easy. Simply select the printer brand you want in the wizard, and complete the setup in just 5 minutes.

Access controls during printing

While the print is ongoing, you can easily adjust various parameters without changing pages or navigating to Mainsail, thanks to the tab-based settings system. You can access options such as Z Offset, speed factor, machine tuning settings, and extrusion factor.

Multi Extruder Control

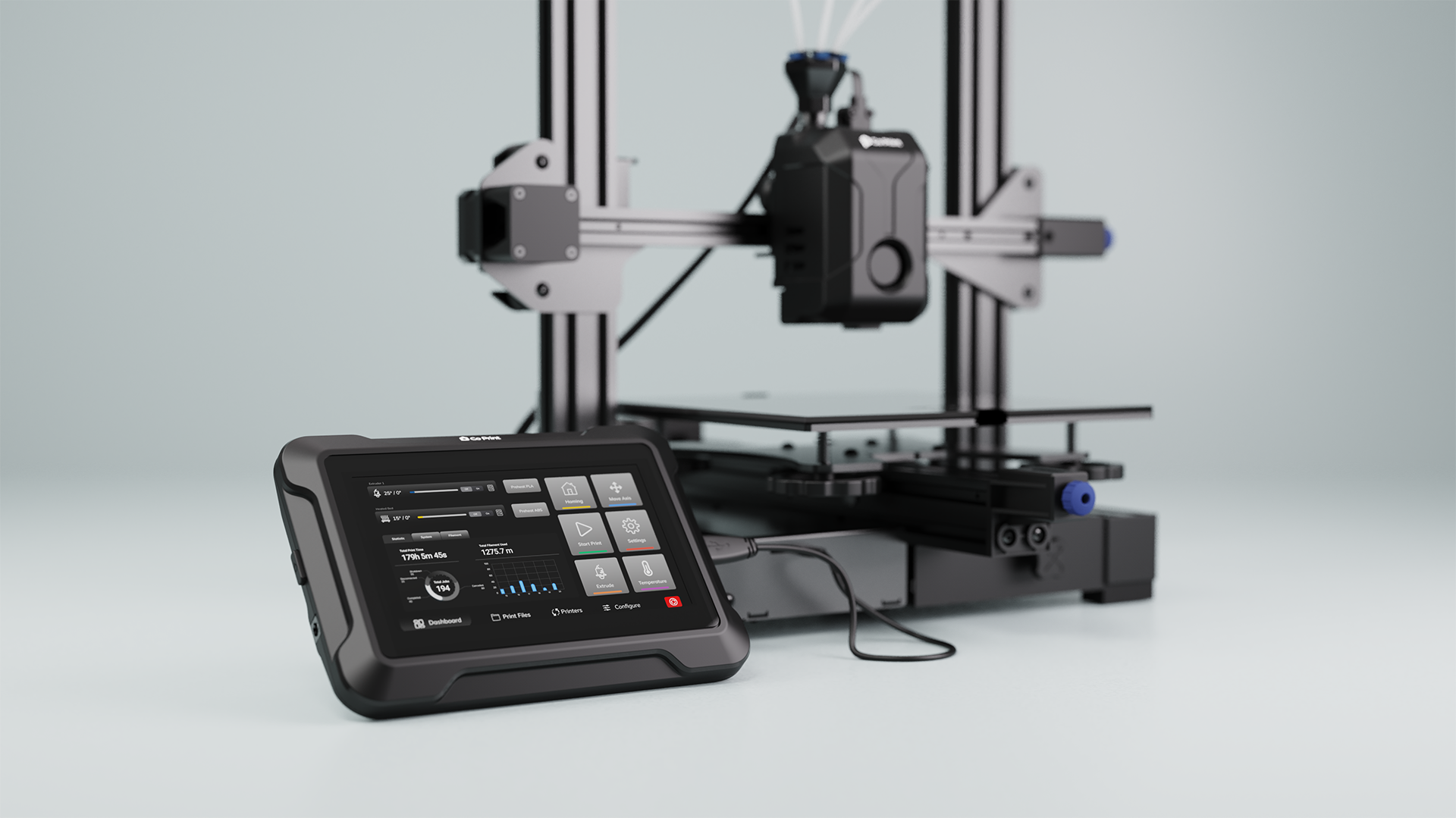

Multi Color Printing with ChromaPad

ChromaPad is the first 3D printer tablet for multi-color printing, managing up to four filaments through rear slots. Paired with ChromaHead's filament-cutting feature, it ensures high-quality prints. The ChromaScreen software offers a user-friendly interface, and its capacity can expand to 20 colors via ECM USB connections. With a specialized processor, ChromaPad delivers unmatched speed in multi-color printing.

User Friendly

Adjust Your View with ChromaPad

ChromaPad can be positioned on the table at different angles thanks to its adjustable rear leg. The leg structure, which can be adjusted up to 70 degrees, enhances the user experience.

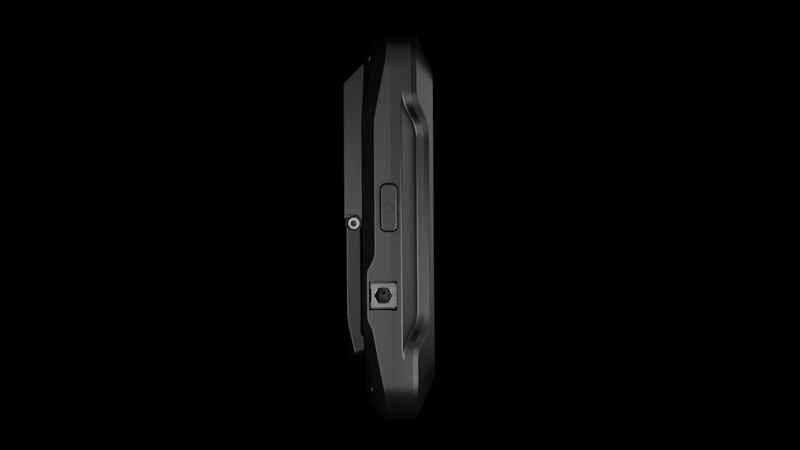

Wide Connection

The connection ports located on ChromaPad

On the right side of ChromaPad, there are 3 USB ports available. These ports can be used to connect systems like 3D printers and Input Shaper. At the rear, there is one ChromaHead socket enabling toolhead control, while 4 extruder slots are provided to manage extruders. On the left side of the tablet, there is a power button and a power slot.

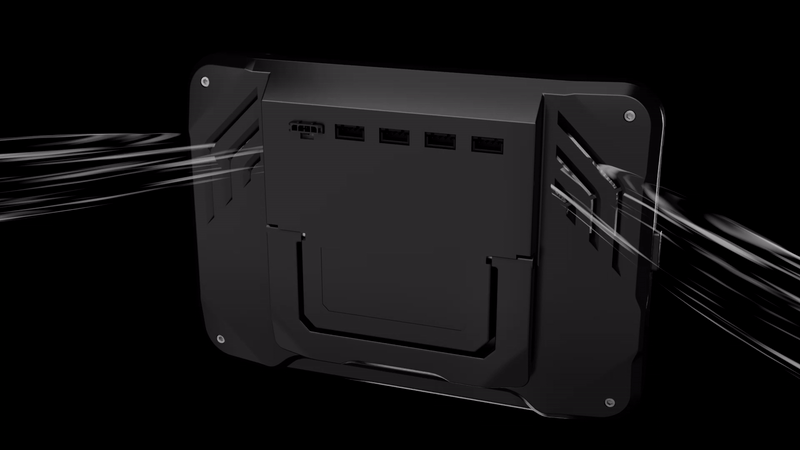

Cooling System

The Coolest Tablet Yet: Powered by Advanced Cooling Technology

The air grilles of ChromaPad attract attention with an aggressive look. These grilles, through the fan system inside the tablet, expel hot air outside, effectively cooling the internal components.
